Cosmic Crustacean

This small but beautiful supernova Remnant (SNR) was the result of the explosion of the star CM Tau, which followed a core-collapse just over 970 years ago.  Located at the centre of the Carb Nebula is the remaining Crab Pulsar neutron star, some 30km in diameter spinning at the rate of 30 times per second.



Footnote & credit: Following a recent knee replacement operation I’m currently unable to set-up and use my astronomy equipment, fortunately I’m still able to continue processing using this excellent public amateur data from the MOANA project located near Fort Davis, Texas, USA  https://erellaz.com/moana/. Many thanks to its creator Elleraz.

Dark Art: Taurus Molecular Cloud

Located northeast (left) of Pleiades, south of California Nebula and north (above) of Aldebaran, spanning more than 30o of the night sky is the Taurus Molecular Cloud (TMC), a rich area of dark nebulae punctuated by bright areas of new star formation.  Moreover, the TMC is thought to be the nearest star forming region to Earth.

Herschel Space Observatory far-infrared’s view of the TMC & approximate image location

All-in-all, the very large TMC provides many promising imaging opportunities.  This image captures numerous, complex dark nebulae across the field-of-view, including Barnard 10 & 214, LDN 1495 & VdB 27, together with bright reflection nebulae LBN 782 & 785 and the odd galaxy – if you look carefully.



Vanguard Of The Winter Night Sky

RGB2 GxFinalX (Large)

Each year whilst the Earth rotates around the Sun, we are also moving through the Milky Way and the Universe itself.  In time, measured by millions of years, the pattern of the night sky will change but for now, measured on a human scale it appears fixed and as a result has become very familiar, so much so that it has formed the basis of navigation for millennia.  For astronomers this affect also results in a predictable pattern of changes during the year, so that every 12-months we first anticipate and then revisit old ‘friends’, none more so than the winter night sky which contains some of the most exciting objects of the year.

Winter Sky Surprisingly it is possible to obtain an early glimpse of these objects just before dusk at the end of a night’s viewing in the late summer but the real show begins during November, when they start to appear more conveniently in the darkness of the early evening.  With this in mind I recently set out to image the vanguard of the winter night sky, Messsier 45 or the Pleiades, an open cluster dominated by bright blue stars.  Located at the ‘front’ of the Taurus constellation, this group of stars heralds the arrival of Orion, perhaps the most spectacular and certainly most imaged constellation of the year, followed by Monoceros, Gemini and Auriga with their own wonderful deep sky objects – but first Pleiades.

525px-M45map

The Pleiades star cluster is visible from almost every part of the globe, from the North Pole to beyond the southernmost tip of South America.  The cluster consists of over 1,000 young stars, although only 14 can be seen with the naked eye, of which seven make up the Pleiades asterism or so-called Seven Sisters.  The Sisters can usually be seen in light polluted skies but in a dark sky, such as I recently experienced at the Les Granges Observatory in southern France, they form a very distinct group of brilliant stars that literally seem to pierce the blackness of the night sky (top-centre image below).

IMG_1111 (Large)

I have successfully imaged the Pleiades before with a DSLR camera but this was the first serious attempt to capture their elusive charm with a more sensitive mono camera.  When imaging the Sisters the objectives are two-fold – to capture: (i) their brilliance and colour, and (ii) the delicate interplay of their light illuminating the interstellar gas and dust behind which they are currently moving. It is this latter effect that forms their characteristic signature which differentiates them from other open star clusters.

Given the brightness of the Pleiades stars I chose short 60-second LRGB exposures at Unity setting.  Such is the subtle nature of the interstellar illumination against the intensity of the large, bright Pleiades stars, that post-processing needs to be especially careful in order to tease out the contrasting nature of the two features.  The result is a beautiful image (top-of-the-page) that captures the power and beauty of this special group of stars which precedes Orion later in the evening at this time of the year and which with luck, will once again provide further exciting opportunities as we continue to move through the rich period of the winter night sky of which the appearance of Pleiades foretells.

IMAGING DETAILS
Object M45 Pleiades
Constellation Taurus
Distance 444 light-years
Size 110’
Apparent Magnitude +1.6

Scope  William Optics GT81 + Focal Reducer FL 382mm  f4.72
Mount SW AZ-EQ6 GT + EQASCOM computer control
Guiding William Optics 50mm guide scope
  + Starlight Xpress Lodestar X2 guide camera & PHD2 control
Camera ZWO1600MM-Cool (mono)   CMOS sensor
  FOV 2.65o x 2.0o Resolution 2.05”/pix  Max. image size 4,656 x 3,520 pix
EFW ZWOx8 + ZWO LRGB & Ha OIII SII 7nm filters
Capture & Processing Astro Photography Tool + PS2,  Deep Sky Stacker & Photoshop CS2, HLVG
Image Location              & Orientation Centre  RA 03:47:06    DEC 24:13:04

Top = North West

Exposures 50 x 60 sec L & 45 x 60 sec RGB  (Total time: 185 minutes)
  @ 139 Gain   21  Offset @ -20oC
Calibration 15 x 60 sec Darks  20 x 1/4000 sec Bias  10 x Flats LRGB    @ ADU 25,000
Location & Darkness Fairvale Observatory – Redhill – Surrey – UK        Typically Bortle 5
Date & Time 17th  November 2018 @ +21.30h
Weather & Moon Approx. 6oC      RH <=80%          🌙 Half Waxing Gibbous





Spring Skies

It’s three weeks since the Spring Equinox and two weeks since moving to British Summer Time (BST or daylight saving, GMT+1 hour), the result is that the night sky starts much later in the evening and is rapidly decreasing in length; it is just about six weeks before Astronomical Darkness completely ceases and will not come back until the end of July.  In addition, through a combination of European pollution and fine sand from the Sahara drifting over South East England this week, otherwise clear skies were badly obscured by the resulting haze.  As a result, since shortly before the full Moon on April 4th astronomy has not been possible – until last night.

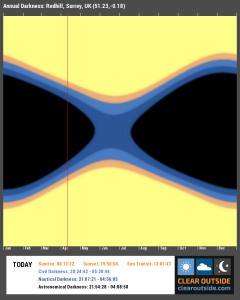

The march of time and annual movements of the Solar System inevitably lead to a significant loss of quantity and quality of darkness at this time of the year.

The march of time and annual movements of the Solar System inevitably lead to a significant loss of quantity and quality of darkness at this time of the year.

Taken this morning, the contrails over Fairvale Observatory make a striking picture but, together with other pollution are having a significant impact on seeing conditions here at the moment.

Taken this morning, the contrails over Fairvale Observatory make a striking picture but together with other pollution are having a significant impact on seeing conditions here at the moment.

In the early evening twilight sky for a brief period between sunset and astronomical darkness, at the moment Venus is low on the western horizon.  Last night its apparent position was also close to the Pleiades star cluster, making an attractive widefield photograph.  Furthermore, shortly before Venus moved below the horizon and the sky had nearly reached Civil Darkness, the constellation Taurus also became visible to the south west with the bull’s ‘eye’ star Alderbaran and the v-shaped Hyades star cluster clearly evident.

Venus at sunset last night.

Venus at sunset last night: the Pleiades can only just be seen at 2-o’clock to Venus with Taurus on the far left.

Twenty minutes after sunset shortly before reaching Civil Darkness, the Pleiades and Taurus constellation are now quite clear.

Twenty minutes after sunset shortly before reaching Civil Darkness, the Pleiades and Taurus constellation are now quite clear.

Such a picture is a reminder that it is important to consider photography other than telescopic based planetary and deep sky imaging, especially as viewing and imaging conditions become more limited over the forthcoming Summer period.
